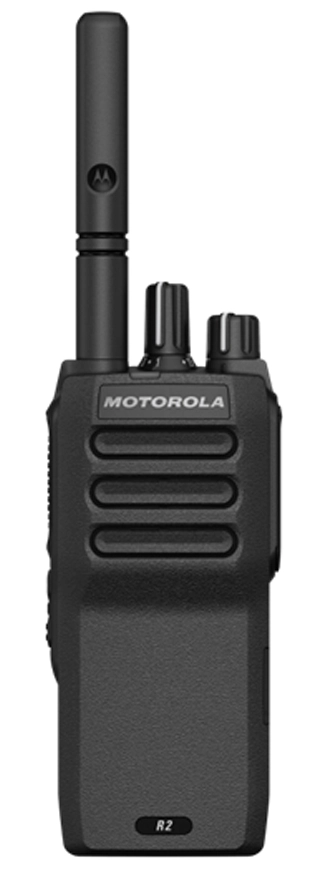

Motorola R2
Motorola R2 adalah HT Motorola terbaru dari dengan frekuensi UHF 400-470 MHz / VHF 136-174 MHz marries durability and ergonomics to ensure confident, easy handling. Come with superior range which support radio trunking IP Site Connect dan juga Capacity Plus single site. Configurable audio and seamless integration, the R2 is a reliable addition to an uninterrupted workday.
Sleek and Tough
Durable, lightweight and long-lasting, HT Motorola R2 MOTOTRBO R2 proves the right choice for all-day reliability, even in challenging work environments. Use with confidence in dusty factories, wet landscaping and more; and with ease, even while wearing gloves.
Make it Loud
With SINC+ noise cancellation, long range and selectable audio profiles, MOTOTRBO R2 shines in noisy work environments; communicate with clarity to stay safe near a punch press, pneumatic drill, bulldozer and more.
Work, Uninterrupted
MOTOTRBO R2 is the ultimate workhorse. Engineered to minimize downtime with a simplified user experience, foolproof ergonomics and low cost migration, the R2 helps you manage your day to day operations without skipping a beat.
Fitur Kunci
Fitur Kunci- UHF, VHF
- 64 channels
- Single site conventional
- Extended Range Direct Mode
- Dual Capacity Direct Mode
- IP Site Connect
- Capacity Plus single site, 2 repeaters
- Transmit Interrupt
- Dual priority scan
- Secure Enhanced Linux operating system
- Enhanced privacy
- Analogue scrambling
- Radio disable/enable
- Remote monitor
- Voice announcement
- Pre programmed text messaging
- Loudness up to 101 phons
- SINC+ noise suppression
- Acoustic feedback suppression
- Quick Call II / MDC1200 capable
- User selectable audio profiles
- Automatic gain control
- Received audio leveling
- Sleek & ergonomic form factor
- Rugged to MIL-STD 810
- IP Rating IP55 (dust and water ingress protection)
- 2 programmable buttons
- Home channel reminder
- Rental timer
Specifications Motorola R2
| GENERAL SPECIFICATIONS | |
| Frequency | UHF 400-470 MHz / VHF 136-174 MHz |
| Typical RF output | UHF 4W / VHF 5W |
| High power Low power | 1W |
| Channel spacing | 12.5 / 20.0 / 25.0 kHz |
| Channel capacity | 64 |
| Dimension (H x W x D) with battery | |
| PMNN4598 high capacity battery | 125 mm x 55 mm x 37 mm |
| PMNN4600 slim battery | 125 mm x 55 mm x 32 mm. |
| Weight with battery | |
| PMNN4598 high capacity battery | 286 g |
| PMNN4600 slim battery | 261 g |
| Battery life3 (analog / digital) | |
| PMNN4598 high capacity battery | 19.5 hours / 26.5 hours |
| PMNN4600 slim battery | 17 hours / 22.5 hours |
| Power supply | 7.5V (nominal) |
| FCC description | UHF: AZ489FT4971 / VHF: AZ489FT3852 |
| IC description | UHF: 109U-89FT4971 / VHF: 109U-89FT3852 |
| AUDIO SPECIFICATIONS | |
| 4FSK digital modulation | 12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination: 7K60F1W |
| Digital protocol | ETSI TS 102 361-1, -2, -3 |
| Conducted/radiated spurious emissions (TIA603E) | < -36 dBm for < 1 GHz ; < -30 dBm for > 1 GHz |
| Adjacent channel power | > 60 dB @ 12.5 kHz / >70 dB @ 20/25 kHz |
| Frequency stability | ± 0.5 ppm |
| Modulation limiting | ± 2.5 kHz @ 12.5 kHz / ± 4.0 kHz @ 20 kHz / ± 5.0 kHz @ 25 kHz |
| RECEIVER SPECIFICATIONS | |
| Analog sensitivity (12dB SINAD) | 0.18 gV (typical) |
| Digital sensitivity (5% BER) | 0.16 gV (typical) |
| Conducted/radiated spurious emissions (TIA603E) | < -57 dBm |
| Intermodulation (TIA603E) | > 70 dB |
| Adjacent channel selectivity (TIA603A)-1T | > 60 dB @ 12.5 kHz / > 70 dB @ 20/25 kHz |
| Adjacent channel selectivity (TIA603E)-2T | > 55 dB @ 12.5 kHz / > 70 dB @ 20/25 kHz |
| Spurious rejection TIA603D | > 70 dB |
| Frequency stability | ± 0.5 ppm |
| Digital vocoder type | AMBE+2 |
| Audio response | TIA603E |
| Audio output power (Rated/Max) | 1 W / 3 W |
| Distortion Audio at rated power | 3% (typical) |
| Maximum speech loudness (ISO 532B) | 101 phon |
| Hum and noise | -45 dB @ 12.5 kHz / -45 dB @ 20/25 kHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating temperature1 | -30 °C to 60 °C |
| Storage temperature1 | -40 °C to 85 °C |
| Thermal shock | Per MIL-STD 810C, D, E, F, G, H |
| Humidity | Per MIL-STD 810C, D, E, F, G, H |
| Electrostatic discharge | IEC 61000-4-2 Level 4 |
| Dust and water intrusion | IEC60529 IP55 |
| Salt fog | Per MIL-STD 810C/D/E/F/G/H |
| Packaging test | Per MIL-STD 810C/D/E/F/G/H |
| MILITARY STANDARDS (MIL-STD 810) | MIL-STD 810H |
