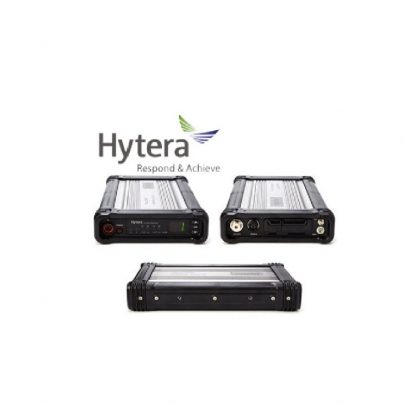

Hytera RD968

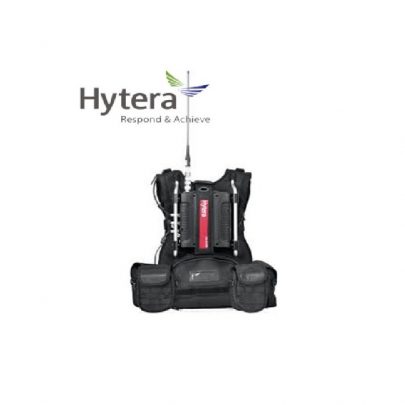

Digital Portable / Mobile Repeater Hytera RD968 IP67 dapat di upgrade menjadi repeater man pack dilengkapi dengan GPS dan battery lithium 10Ah
Fitur Digital Portable /Mobile Repeater Hytera RD968
Smart Battery (optional)
A 10Ah smart Li-Ion battery can support at least eight hours of work when working at 50% duty cycle and high TX power. Compatible with the smbus1.1 standard, RD96X can monitor battery conditions such as estimated remaining capacity, used capacity percentage, and usage record; the device can also maximize the battery life; through smart charge management, it can automatically recharge the battery for use anytime; powered by three levels of battery protection, the device considerably enhances charging safety and reliably.
Repeater Diagnostics and Control
Through a PC-based application, the product can monitor, diagnose and control remote (connected to the Internet via an IP port) and local repeaters (via a USB port), thus increasing the productivity. Hytera’s RDAC software supports network access at multiple points and allows the administrator to monitor networked two-way radios.
Voice Input/output via Dual Time Slots: easy for monitoring and voice recording
In digital mode, the device supports voice input and output via dual time slots and enables users to record calls continuously.
Digital/analog Compatibility and Smart Switching
Back to back interconnection of digital & analog network can be achieved by wired or wireless IP, ensuring a smooth analog -to-digital transition.
Flexible Networking
By connecting geographically distributed repeaters that run at the same or different frequencies to form an IP-based and location-independent wireless communication network, IP-based repeater interconnection allows mobile radios to obtain voice and data services while roaming.
16 Channels
The product supports up to 16 channels. You can switch between channels using PCbased RDAC software, the channel selector knob on the front panel, or the external interface on the repeater.
Digital-analog Interconnection for Smooth Transition
The feature enables two-way radios with digital and analog capabilities, and digital and analog users to intercommunicate in different operating modes to guarantee users’ seamless transition from analog to digital capabilities.
GPS
The GPS module supports GPS data transmission and enables emergency command centers to monitor the location of a small mobile network in real time.
Specifications Digital Portable Repeater Hytera RD968
| General | |||
| Frequency Range | VHF 136-174MHz UHF1 400-470MHz UHF3 350-400MHz |
||
| Channel Capacity | 16 | ||
| Channel Spacing | 12.5kHz/20kHz/25kHz | ||
| Operating Voltage | DC: 13.6 V±15% Battery: 14.8V | ||
| Current Drain | Standby | <0.5A | |
| Transmit | <2.5A | ||
| Frequency Stability | ±0.5ppm | ||
| Battery | 10Ah(Li-lon) | ||
| Battery Life(50-50 Duty Cycle, High TX Power) | 8h | ||
| Antenna Impedance | 50Ω | ||
| Dimensions (H×W×D) | 301x184x51mm (with protective shell) 291x172x41mm (without protective shell) |
||
| Weight | <3.0kg | ||
| Transmitter | |||
| RF Power Output | 1-10W (adjustable) | ||
| FM Modulation | 11K0F3E@12.5kHz 14K0F3E@20kHz 16K0F3E@25kHz |
||
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data & Voice: 7K60FXW |
||
| Conducted/Radiated Emission | -36dBm <1GHz -30dBm >1GHz |
||
| Modulation Limiting | ±2.5 kHz @ 12.5 kHz ±4.0 kHz @ 20 kHz ±5.0 kHz @ 25 kHz |
||
| FM Hum & Noise | 40dB @ 12.5 kHz 43dB @ 20 kHz 45dB @ 25 kHz |
||
| Adjacent Channel Power | 60dB@12.5kHz 70dB@20 /25kHz |
||
| Audio Response | +1 ~ -3dB | ||
| Audio Distortion | ≤3% | ||
| Digital Vocoder Type | AMBE++ or SELP | ||
| Digital Protocol | ETSI-TS102 361-1,2&3 | ||
| Receiver | |||
| Sensitivity | Analog | 0.3μV (12dB SINAD) 0.22μV (Typical) (12dB SINAD) 0.4μV (20dB SINAD) |
|
| Digital | 0.3uV/BER5% | ||
| Adjacent Channel Selectivity TIA-603 ETSI |
65dB @ 12.5 kHz ;75dB @ 20/25 kHz 60dB @ 12.5 kHz ;70dB @ 20/25 kHz |
||
| Intermodulation TIA-603 ETSI |
75dB @ 12.5/20/25 kHz 70dB @ 12.5/20/25 kHz |
||
| Spurious Response Rejection TIA-603 ETSI |
75dB @ 12.5/20/25 kHz 70dB @ 12.5/20/25 kHz |
||
| Blocking TIA-603 ETSI |
90dB 84dB |
||
| Hum and Noise | 40dB @ 12.5KHz 43dB @ 20KHz 45dB @ 25KHz |
||
| Rated Audio Distortion | ≤3% | ||
| Audio Response | +1 ~ -3dB | ||
| Conducted Spurious Emission | <-57dBm | ||
| Environmental Specifications | |||
| Operating Temperature | -30?~+60? | ||
| Storage Temperature | -40?~+85? | ||
| ESD | IEC 61000-4-2 (level 4) ±8kV (contact) ±15kV (air) |
||
| American Military Standard | MIL-STD-810 C/D/E/F/G | ||
| Dust & Water Intrusion | IP67 Standard | ||
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard | ||
| Shock & Vibration | Per MIL-STD-810 C/D/E/F/G Standard | ||
| GPS | |||
| TTFF (Time To First Fix) Cold Start | <1 minute | ||
| TTFF (Time To First Fix) Hot Start | <10 seconds | ||
| Horizontal Accuracy | <10 meters | ||
