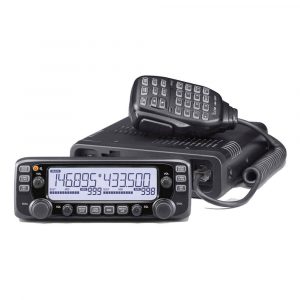

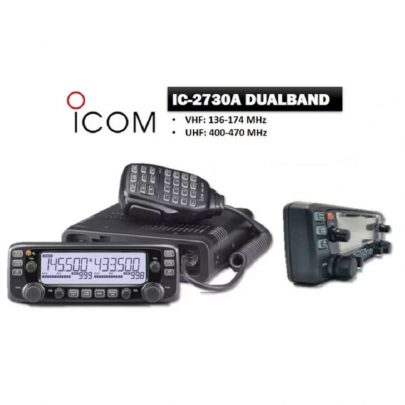

Icom IC-2730A 2m / 440 dual band mobile merupakan radio rig yang memiliki layar LCD dengan latar belakang putih yang besar. Dual band VHF dan UHF yang independen menjadikan penerimaan simultan crossband seperti halnya V / V dan U / U. Output 50 watt tersedia di kedua band. Power bisa dipilih pada 50, 15 dan 5 watt. Tersedia 1000 saluran memori, 2 saluran panggilan. Frekuensi 118-137 [mode AM], 137-174 dan 375-550 MHz. Unit opsional termasuk Bluetooth UT-133 dan VS-3 Bluetooth ear-piece microphone.

IC-2730A dilengkapi dengan: HP HM-207, gantungan mikrofon, kabel Controller OPC-837 (11,4 kaki), sekering cadangan dan CD dengan Manual Pemilik dan perangkat lunak CS-2730 (sebagai unduhan gratis).

ICOM

Description

FEATURES of Icom IC-2730A

50 watts of output on VHF and UHF

The IC-2730A provides VHF/VHF, UHF/UHF simultaneous receive capability as well as VHF/UHF receive. Main dials, volume, squelch knobs and primal buttons are symmetrically laid out for each band.

VHF/VHF, UHF/UHF simultaneous receive

The IC-2730A provides VHF/VHF, UHF/UHF simultaneous receive capability as well as VHF/UHF receive. Main dials, volume, squelch knobs and primal buttons are symmetrically laid out for each band.

Optional VS-3 Bluetooth® headset

The optional VS-3 Bluetooth® headset can wirelessly control the IC-2730A with three programmable and a PTT button. It also provides VOX operation for hands-free communication. (Optional UT-133 Bluetooth® unit must be installed in the IC-2730A.)

Easy-to-See large white backlight LCD

The display size of the IC-2730A is 1.5 times larger its predecessor, the IC-2720H. Frequency display and channel names are larger, and the white backlight provides higher contrast.

Easy controller mounting with the optional MBF-1

The combination of the optional MBF-1 suction cup mounting base and MBA-5 controller bracket provides easy tilt and swivel adjustments. The large suction cup can be mounted on flat surfaces and can be removed easily.

50 Watts of output on VHF and UHF

The IC-2730A employs a durable PA module and delivers 50 watts of high power operation on both VHF and UHF bands.

Built-in 50 CTCSS and 104 DTCS tones with split tone function

The CTCSS and DTCS tones are built-in for quiet stand-by and repeater access. The split tone function allows you to set CTCSS/ DTCS tones separately for repeater uplink and downlink on a per channel basis.

Controller attachment to the main Unit with optional MBA-4

With the optional MBA-4 combination bracket, the controller can be attached to the main unit. The microphone jacks are mounted on both the controller and main unit.

Wideband receiver

The IC-2730A covers 118–174 and 375– 550MHz. You will be able to listen to aviation, marine, weather channels and other utility communications.

More great features

  • HM-207 remote control microphone
  • CS-2730 Free download PC programming software
  • Versatile scanning capability
  • Squelch delay and squelch attenuator
  • Sub band auto mute function
  • Sub band busy beep function
  • Auto repeater functions (Depending on the transceiver version)
  • Auto power off
  • Time-out-timer
  • 16 DTMF auto dial memories
  • Weather channel receive with weather alert (USA version only)
  • CI-V remote control capability (through the OPC-478UC)

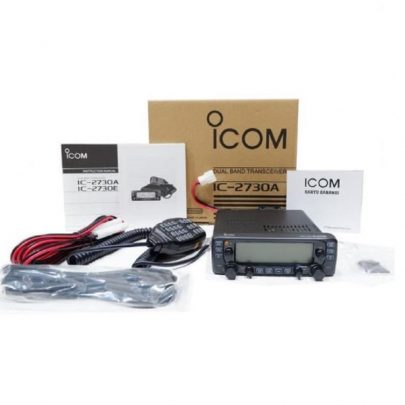

Supplied accessories

  • Hand microphone, HM-207
  • Controller cable, OPC-837
  • Microphone hanger
  • DC power cable, OPC-345
  • Spare fuses



In addition to the above accessories the IC-2730A Deluxe version also comes with:

  • MBA-5 Remote head bracket



Optional mounting kits available:

  • MB-2730B, base station kit (MBA-4/MBF-4)
  • MB-2730 R, simple remote head kit (MBA-5/MBF-4)
  • MB-2730 R1, glass remote head kit (MBA-5/MBF-1, MBF-4)





Brand

ICOM

ICOM

Spesifikasi

Specifications

General
Frequency coverage and Mode:(Unit: MHz)

Version Transmit Receive
USA 144–148, 430–450MHz 118–174, 375–550MHz*1
EXP 137–174, 400–470MHz*2 118–174, 375–550MHz*2

*1 Guaranteed range, 144–148, 430–450MHz, *2 144–148, 430–440MHz

Mode F2D, F3E
Type of emission F2D, F3E (FM)
No. of memory channels 1052 channels (including 50 scan edges and 2 Call)
Frequency stability ±2.5ppm
Operating temp. range –10°C to +60°C; 14°F to +140°F
Frequency stability ±3ppm (–10°C to +60°)
Power supply requirement: 13.8V DC ±15%
Current drain (at 7.4V DC):

Transmit

Receive



13A

1.8A/1.2A (Max. audio/Stand-by)

Antenna impedance 50 Ohms (SO-239)
Dimensions (W×H×D)
Main Unit
Controller
:
150×40×151 mm; 5.91×1.57×5.94 in
150×50×27.2 mm; 5.91×1.97×1.07 in
Weight (approx.)
Main Unit
Controller
:
1.2 kg; 2.65 lb
140 g; 4.94 oz
Transmitter
Output power (at 13.8V DC)

TPE version

50W, 15W, 5W
25W, 15W, 5W
Max. frequency deviation ±5.0kHz/±2.5kHz (W/N)
Spurious emissions Less than –60dBc
Microphone impedance 60 Ohms(8-pin modular)
Receiver
Intermediate frequency
A band
B Band
:
38.85MHz/450kHz
46.35MHz/450kHz
Sensitivity (at 12dB SINAD) Less than –15dB?
Selectivity More than 60dB/55dB (W/N)
Spurious response rejection
A band
B band
:
More than 60dB/55dB (V/U)
More than 60dB/60dB (V/U)
Audio Output Power More than 2W (10% dist. 8?)
External speaker connector 2-conductor 3.5(d) mm 1/8″/4 Ohms
Receiver sensitivity
FM/FM-N (12dB SINAD)
137–159.995MHz*
375–399.995MHz
500–550.000MHz
160–174.000MHz
400–499.995MHz*

AM/AM-N (10dB S/N)
118–136.991MHz
*Except amateur bands.

–10dBµ
–5dBµ
–5dBµ
–5dBµ
–10dBµ

0dBµ

Applicable U.S. Military Specifications

Standard MIL 810 C
Method Proc
High Temp. 501.5 I,II
Low Temp. 502.5 I,II
Solar Radiation 505.5 I
Vibration 514.6 I
Shock 516.6 I

All stated specifications are subject to change without notice or obligation.
