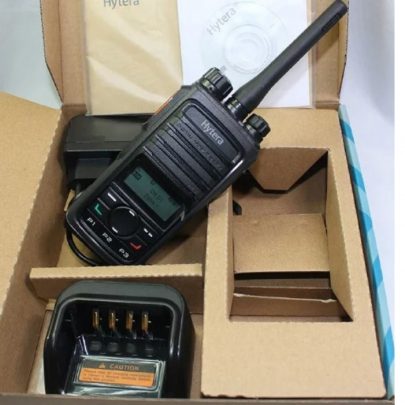

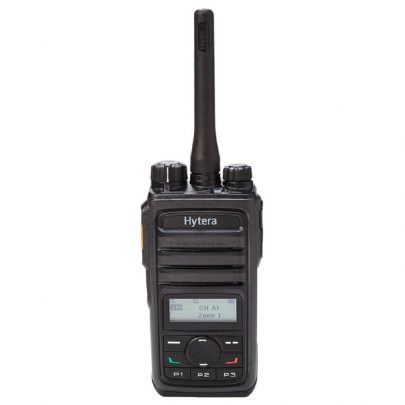

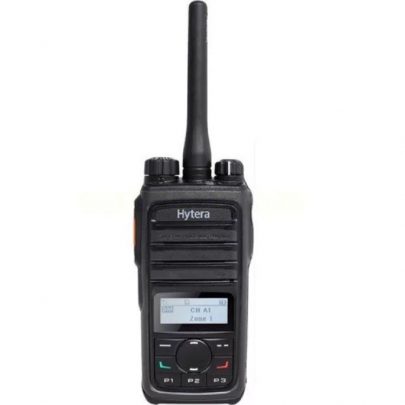

HYTERA PD568


Compare

HYTERA PD568 Dual modes (analog & digital) operation ensures a smooth analog to digital migration.
UHF: 350-400 MHz, 400-470MHz , VHF: 136-174MHz

·Small, Sleek, Light
The size is 115 X 54 X 27mm, dual-color injection, weight is 260g.

Features of HYTERA PD568

·Small, Sleek, Light
The size is 115 X 54 X 27mm, dual-color injection, weight is 260g.

·Long Battery Life
In digital mode, PD56X operates at least 16 hours under a duty cycle of 5-5-90.

·Rugged & Reliable
It is compliant with MIL-STD-810 C/D/E/F/G standards.

·One Touch Call/Text
Supports One Touch features that comprise of Preprogrammed Text Messages, Voice Calls and Supplementary Features.

·Supplementary Features (optional)
PD56X can decode radio enable, radio disable, and remote monitor, as well as Priority Interrupt.

·Dual Mode (Analog & Digital)
Dual modes (analog & digital) operation ensures a smooth analog to digital migration.

·Secure Communication
Provides basic digital encryption and Scrambler feature in analog mode.

·Advanced Signaling
Supports multiple advanced analog signaling modes, including HDC1200, 2-Tone and 5-Tone, providing better integration into existing analog radio fleets.

·DMRA Data Service
The data protocol is fully compliant to DMRA standard.

·Pseudo Trunk
This virtual trunking feature allocates a free timeslot for urgent communications. This effectively enhances frequency efficiency and allows you to communicate in a timely manner in emergency situations.

·DMO True 2-Slot
In DMO Hytera can provide 2-slot communication, which allows for 2 talk paths on 1 frequency.

Target Markets

·Retail
Shopping Malls with high noise level require radios with good noise reduction.

·Education
PD56X has compact size for easy use that is capable of reaching long communication distance of a school or university campus.

·Security
Enriched with several encryption types PD56X will make your communication more private.

·Warehouse
A durable battery allows for full shifts without the need to recharge.

·Hotel
Heavy communication traffic require more effective use of frequency resources.

·Rent
The rent function is necessary for rent industry.





General
Frequency Range UHF: 350-400 MHz, 400-470MHz , VHF: 136-174MHz
Channel Capacity 512
Channel Spacing 25/20/12.5KHz
Zone Capacity 32
Operating Voltage 7.4V (rated)
Battery (5-5-90 Duty Cycle, High TX Power) 1500mAh (Li-Ion)/2000mAh
Battery Life (5/5/90 ) Analog: about 11 Hours
Digital: about 16 Hours
Frequency Stability ±0.5ppm
Antenna Impedance 50 Ohms
Dimensions 115 x 54 x 30mm
Weight 280g
Transmitter
RF Power Output VHF High power: 5W
VHF Low power: 1W
UHF High power: 4W
UHF Low power: 1W
FM Modulation 11K0F3E @ 12.5KHz 14K0F3E @ 20KHz 16K0F3E @ 25KHz
4FSK Digital Modulation 12.5kHz Data Only: 7K60FXD 12.5kHz Data & Voice: 7K60FXW
Conducted/Radiated Emission -36dBm1GHz
Modulation Limiting ±2.5KHz @ 12.5KHz ±4.0KHz @ 20KHz ±5.0KHz @ 25KHz
FM Noise 40dB @ 12.5KHz 43dB @ 20KHz 45dB @ 25KHz
Adjacent Channel Power 60dB @ 12.5KHz 70dB @ 20/25KHz
Audio Response +1 ~ -3dB
Audio Distortion <= 3%
Digital Vocoder Type AMBE++ or SELP
Digital Protocol ETSI-TS102 361-1,-2,-3
Receiver
Sensitivity Analog 0.22µV (12dB SINAD) 0.22µV (Typical) (12dB SINAD) 0.4µV (20dB SINAD)
Digital 0.22µV /BER5%
Adjacent Selectivity
TIA-603
ETSI
60dB @ 12.5KHz / 70dB @ 20&25KHz
60dB @ 12.5KHz / 70dB @ 20&25KHz
Spurious Response Rejection
TIA-603
ETSI
70dB @ 12.5/20/25KHz
70dB @ 12.5/20/25KHz
Inter-modulation
TIA-603
ETSI
70dB @ 12.5/20/25KHz
65dB @ 12.5/20/25KHz
Hum & Noise 40dB @ 12.5KHz 43dB @ 20KHz 45dB @ 25KHz
Rated Audio Power Output 0.5W
Rated Audio Distortion <=3%
Audio Response +1 ~ -3dB
Conducted Spurious Emission < -57dBm
Environmental Specifications
ESD IEC 61000-4-2 (level 4) ±8kV (contact) ±15kV (air)
Dust & Water Intrusion IP54 Standard
Humidity Per MIL-STD-810 C/D/E/F/G Standard
Shock & Vibration Per MIL-STD-810 C/D/E/F/G Standard

PD56X, X=0, 2, 5,6 or 8, model number varies geographically. For details, please contact our regional sales representatives.

All specifications are subject to change without notice due to continuous development.
