Features:
– FM Radio
– CTCSS/DCS
– Auto Search
– Battery: Li-ion Battery
– Dual-watch operation
– Power switch: 4W/2W/1W
– Built-in VOX function
– Priority scan
– Wide/naarrow bandwidth
– PC Programme or keypads programme
– Busy Lock
– Cable Clone
– Alarm Function
– Voice Scramblem (Optional)
| Frequency Range | 136-174MHz and 400-470MHz |
| Power Output | 4 Watt / 1 Watt |
| Talk Range | <5KM |
| Volume | 110 x 56 x 37 mm |
| TRANSMITTER | ||
| Emission Current | : | ≤1.5A |
| Modulation sensitivity | : | 12mV |
| Modulation Distortion | : | <5% |
| Modulation Limiting | : | Wide <5KHz Narrow <2.5KHz |
| Modulation Mode | : | 16ΦF3E 11KΦF3E |
| Remanent Radiatio | : | ≤7μw |
| Preemphasis character | : | 6dB |
| CTCSS/DCS Frequency Deviation | : | 0.75KHz±50Hz 0.37KHz±30Hz |
| RECEIVER | ||
| RF Sensitivity | : | -122dBm(12dB SINAD) |
| Modulation Receiver Bandwith | : | 5KHz |
| Audio Distortion | : | ≤10% |
| Audio power | : | <0.5w |
| Audio Response | : | 6dB |
| Blocking | : | ≥85dB |
| Spurious response rejection | : | ≥65db |

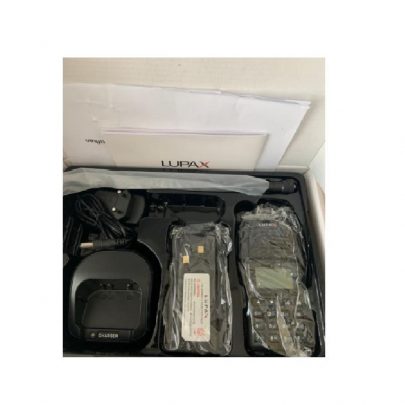

| Each set packaging included :- | ||
| 1 | x | Body |
| 1 | x | 7.4V Lithium Battery |
| 1 | x | Charger |
| 1 | x | User Manual |
