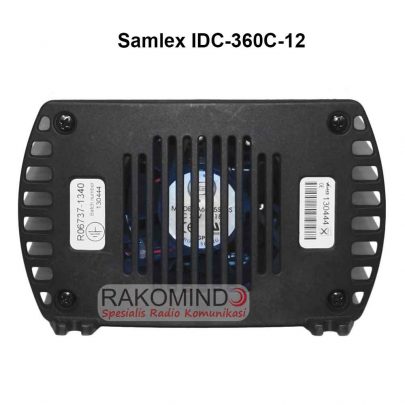

Samlex IDC-360C-12
Samlex IDC-360C series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output.
IDC-360B-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 30 Amps.
Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection.
The unit comes with ¼” push-on flat blade “quick disconnect” connectors. IDC-360B-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/EC.
Specifications
| Input | 30 – 60 VDC |
| Output | 12.5 VDC |
| Amps | 30 Amps |
| Weight | 3.1 (lbs) |
| Weight | 1.4 (kg) |
| Dimensions | 5.23 x 7.5 x 3.27 (in) |
| Dimensions | 132.8 x 190.5 x 83 (mm) |
| Safety | CE |
| Warranty | 1 Year Limited |
Samlex IDC-360C-12 Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
