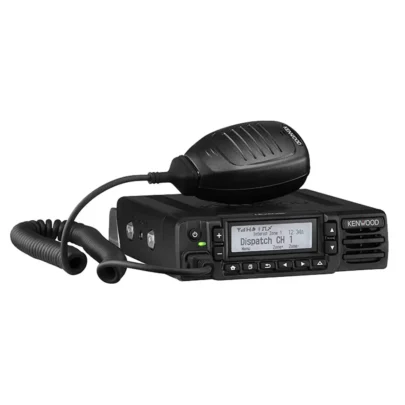

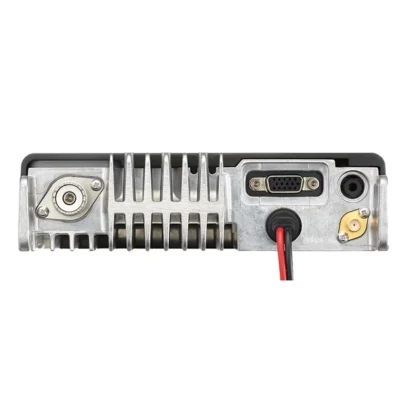

Kenwood NX-3720HG – Radio Rig Digital VHF
Kenwood NX-3720HG radio rig mobil VHF 136-174 MHz dengan power output 50 W. Mixed Analog dan Digital Radio NXDN dan DMR yang mendukung DMR Tier III Trunking Radio. Dengan 512 channel dan 128 zona, built in GPS dan Bluetooth, dan layar LCD Full Dot Matrix.
Fitur-Fitur Utama
- Mobile Radio Rig VHF 136-174 MHz: Jangkauan komunikasi radio rig yang luas dan sinyal yang stabil.
- Mode Digital NXDN dan DMR: Komunikasi digital berkualitas tinggi dengan mode NXDN dan DMR. Mendukung DMR Tier III Trunking radio.
- Operasi Mixed Digital & Analog: Migrasi lancar antara mode radio digital dan analog.
- 512 Channel dan 128 Zona: Pengelolaan radio rig dan penyimpanan frekuensi yang efisien, sesuai kebutuhan.
- Power Output RF 50 W: Kekuatan sinyal yang cukup untuk jangkauan komunikasi yang optimal.
- IP Rating IP54/IP55: Radio base waterproof dengan IP54 untuk RF Deck dan IP55 untuk Remote Control Head.
- GPS Terintegrasi: Menawarkan kemampuan pelacakan lokasi mobile radio yang akurat.
- Bluetooth Bawaan: Konektivitas fleksibel Kenwood NX-3720HG dengan perangkat lain secara wireless.
- Tampilan Full Dot LCD dengan Backlit Putih: Layar LCD Full Dots Matrix (256(W) x 82(H) dots, monochrome) jelas dan mudah dibaca. Dengan 4-Line Basic Frame dan 4-Line Text Message Frame.
Digital Radio DMR
- DMR Tier III Trunking
- DMR Tier II Conventional
- Auto Slot Select DMR
- Site Roaming
- 12.5 kHz Two slot TDMA channels
- Call Interruption
- Dual-slot Direct Mode
- Enhanced Encryption
- Energy Efficient
Radio Digital NXDN
- NXDN Type C & Gen2 Trunked
- NXDN Conventional
- 6.25 & 12.5 kHz Channels
- All Group Call
- Over the Air Alias (OAA)
- Over the Air Programming (OTAP)
Radio Analog
- Conventional & LTR Trunking
- FleetSync/II: PTT ID ANI / Caller ID Display, Selective Group Call, Emergency Status / Text Messages
- MDC-1200: PTT ID ANI / Caller ID Display, Emergency, Radio Check / Inhibit
- QT / DQT, DTMF, 5-tone
- Built-in Voice Inversion Scrambler
Fitur Lainnya Kenwood NX-3720HG
- Audio Output Power 4 Watts
- Paging Call
- Emergency Call
- Status / Text Message
- Remote Stun / Kill / Check
Spesifikasi Kenwood NX-3720HG
| GENERAL | |
| Frequency Range | 136-174 MHz |
| Max. Channels per Radio | Up to 1000 channels with option |
| Number of Channels | 512 |
| Number of Zones | 128 |
| Channel Spacing: | |
| Analog | 12.5 / 15 / 25 * / 30 * kHz |
| Digital | 6.25 / 12.5 kHz |
| Power Supply | 13.6 V DC +-15 % |
| Current Drain: | |
| Standby | 0.45 A |
| RX | 2.3 A |
| TX | 12 A |
| Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
| Frequency Stability | +- 1.0 ppm (-22°F to +140°F) |
| Antenna Impedance | 50 Ohms |
| Dimensions (W x H x D) | 6.30 x 1.69 x 6.30 in (160 x 43 x 160 mm) |
| Radio with Control Head | |
| * Projections not included | |
| Weight (net) *2 | 2.65lbs (1.2 kg) |
| FCC ID: | |
| Type 1 | K44479200 |
| Type 2 | – |
| IC Certification: | |
| Type 1 | 282F-479200 |
| Type 2 | – |
| RECEIVER | |
| Sensitivity: | |
| NXDN 6.25 kHz Digital, 3 % BER | 0.20 μV |
| NXDN 12.5 kHz Digital, 3 % BER | 0.25 μV |
| DMR 12.5 kHz Digital, 5 % BER | 0.30 μV |
| DMR 12.5 kHz Digital, 1 % BER | 0.45 μV |
| Analog, 12 dB SINAD | 0.25 μV |
| Selectivity: | |
| Analog @ 12.5 kHz | 70 dB |
| Analog @ 25 kHz | 80 dB |
| Intermodulation | 70 dB |
| Spurious Rejection | 80 dB |
| Audio Distortion | 2% |
| Audio Output | 4 W/4 Ohms |
| TRANSMITTER | |
| RF Power Output (H / M / L) | 50 W/30 W/5 W |
| Spurious Emission | -73 dB |
| FM Hum & Noise | Analog @ 25 kHz |
| Analog @ 12.5 kHz | |
| Audio Distortion | 2% |
| Digital Protocol | ETSI TS 102 361-1, -2, -3 |
| Emission Designator | 16K0F3E *1, 11K0F3E, 8K30F1E, 8K30F1D, 8K30F7W, 7K60FXD, 7K60FXE, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D |
| APPLICABLE MIL-STD | MIL-STD-810 C / D / E / F / G |
| IP Rating | IP54 |
