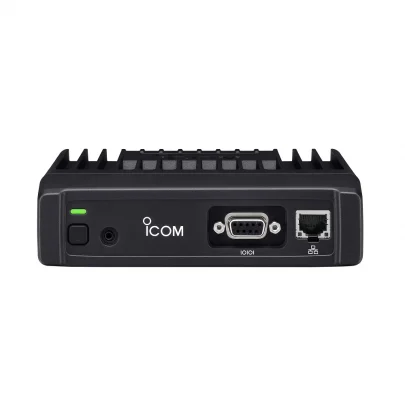

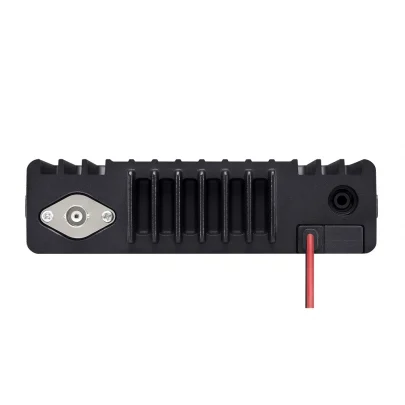

Icom IC-F6122DD UHF Data Transceivers
Data Transceivers Icom IC-F6122DD UHF Data Transceivers
- 9600bps (at 12.5kHz) and 4800bps (at 6.25kHz) data mode programmable
- RS-232 and RS-232 + Ethernet versions
- Fast data transfer using 4-level FSK modulation suitable for real-time data monitoring
- 25W, 10W and 2.5W three-step RF output power
- BNC antenna connector
- Individual, group and all calls
- Data encryption function (500 codes)
- Memory channel selection via PC control command
- Optional CS-F5120DD, Programming Software and OPC-2218LU, USB type Programming Cable
Specifications
General |
|
Frequency coverage | 400–470MHz |
Number of channels | 128 channels |
Type of emission | 8K30F1D, 4K00F1D (4FSK) |
Channel spacing | 12.5/6.25kHz |
Over-the-air data rate | 9600/4800bps |
Power supply requirement | 13.6V DC |
Current drain (approx.) Tx High (25W) Rx Standby |
6A 400mA |
Antenna impedance | 50Ω (BNC) |
Operating temperature range | –30°C to |
Transmitter |
|
Output power (at 13.6V DC) | 25W, 10W, 2.5W (Hi, L2, L1) |
Spurious emissions | 70dB min. |
FSK error | 2.5% typ. (DN/DVN) |
Frequency stability | ±1.0ppm |
Receiver |
|
Sensitivity (at 1% BER) | –4dBμV/–5dBμV emf typ. (DN/DVN) |
Adjacent channel selectivity | 64dB/60dB typ. (DN/DVN) |
Spurious response | 76dB/70dB typ. (DN/DVN) |
Intermodulation | 68dB/66dB typ. (DN/DVN) |
Applicable U.S. Military Specifications
Meets equivalent MIL-STD-810-C, -D, -E , -F and -G.
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
Standard | MIL 810 G | |
Method | Proc | |
Low Pressure | 500.5 | I, II |
High Temp. | 501.5 | I, II |
Low Temp. | 502.5 | I, II |
Temp. Shock | 503.5 | I-C |
Solar Radiation | 505.5 | I |
Rain Blowing/Drip | 506.5 | I, III |
Vibration | 514.6 | I |
Shock | 516.6 | I, IV |
