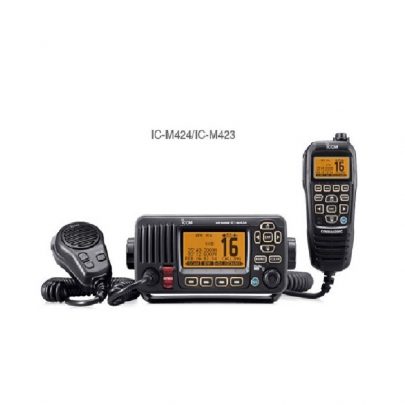

ICOM IC-M424 the World’s First Active Noise Cancelling Class D DSC Fixed Mount!
Read the Practical Sailor Review of the M424 here!
Click the image to view the PDF review.
New Icom marine family user interface
The new menu system provides easy and intuitive operation. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons. The directional keypad allows you to perform various operations and settings.
Active noise cancelling
The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. You will hear better, be heard better.
10W Loud Audio, Public Address and Foghorn
The IC-M424 has a built-in 10W amplifier that increases the audio output from additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the additional external speaker.
Built-in Class D DSC
The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.
Learn how to register your DSC radio
New Optional COMMANDMICIVTM HM-195B/SW
The new optional COMMANDMICIV makes it convenient for using the IC-M424 from a separate cabin or tower. All functions of the IC-M424 can be controlled from the COMMANDMICIV.
Common GPS/NAV Interface
When connected to an external GPS receiver, current position and time are shown on the IC-M424’s display. When receiving position information from another vessel, the IC-M424 can transfer it to a navigational device via NMEA 0183 connectivity.
MarineCommanderTM Compatible
When connected to the MarineCommander, the received DSC message pops up on the multi-function display.
And more
- MA-500TR AIS transponder compatible
- AquaQuakeTM draining function
- IPX7 submersible protection (1m depth for 30 minutes)
- Weather channels with alert function
- Dual/tri-watch function for monitoring Ch.16 and/or call channel
- Priority and normal scan
- Built-in attenuator for local communication
- Black and super white versions available
Specifications
| General | |
|---|---|
| Frequency Range Tx Rx |
156.025–157.425 MHz 156.050–163.275 MHz |
| Usable channels | INT, USA, CAN, WX channels |
| Type of emission | 16K0G3E (FM) 16KOG2B (DSC) |
| Power supply requirement | 13.8V DC ±15% |
| Current drain (at 13.8V DC) Tx 25W output Rx AF max. (RX SP ON) |
5.5A 5A (External speaker) |
| Operating temperature range | -20°C to +60°C; -4°F to +140°F |
| Antenna Impedance | 50O (SO-239) |
| Dimensions (W×H×D) (Projections not included) |
180 × 82 × 119.9 mm; 7.09 × 3.23 × 4.72 in |
| Weight (approx.) | 14kg; 3.09lb |
| NMEA in/out formats | RMC, GGA, GNS, GLL, DSC, DSE |
| Transmitter | |
|---|---|
| Output power (at 13.8V DC) | 25W, 1W |
| Max. frequency deviation | ± 5 kHz |
| Frequency stability | ±10ppm (-20°C to +60°C) |
| Spurious emissions | Less than –70dBc |
| Residual modulation | More than 40dB |
| Adjacent channel power | More than 70dB |
| Audio frequency response | +1dB to –3dB of 6dB octave from 300Hz to 2500Hz |
| Receiver | |
|---|---|
| Intermediate frequency | 1st 21.7MHz, 2nd 450kHz |
| Sensitivity (at 12dB SINAD) | 0.22µV typical |
| Squelch sensitivity | Less than 0.22µV |
| Adjacent Channel Selectivity | More than 70dB |
| Spurious response | More than 70dB |
| Intermodulation | More than 70dB |
| Hum and noise ratio | More than 40dB |
| Audio output power External speaker |
(at 10% distortion, 4 ? load) 10W typical |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
| Applicable IP Rating | |
|---|---|
| Ingress Protection Standard | |
| Water | IPX7 (Waterproof protection) |
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Hand microphone, HM-196B/SW
- DC power cable
- Mounting bracket kit
