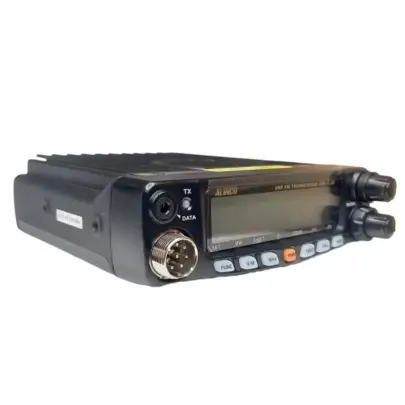

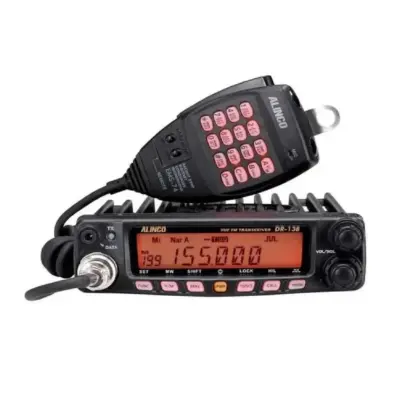

Spesifikasi Radio Rig Alinco DR-138
- Frequency range:136.000~173.9975MGts
- Output power: 60W /25W/10W
- The largealphanumeric display
- 3colorbacklightLCDdisplay
- Programmingboth manuallyandwith a PC
- 200Memory Channels
- Great choice ofa selective callfunctions: 5-Tone, 2-Tone, Tone-4 international
- 50CTCSS
- 114DCS
- DTMF / ANIdecoder
- Voicecompander (noise reduction andimproved clarityof sound)
- Scramblerinverse(DR-138S)
- Functions toprotect the safety ofcommunicationsRadio stun / Kill / Revive
- Multi-functionmicrophone with light,provides directkeyboard inputfrequency andother
- Differentscanning modes
- lock the keypad
- Wide- WideandNarrow- Narrowband16K0F3E / 11K50F3E
- Compliance withMIL-STD-810G
Specifications
| Genaral | |
| FREQUENCY RANGE: | DR-138HE: TX/RX 144.000-145.9975 DR-138HT: TX 144.000-147.9975 RX 136.000-173.9975 DR-438HE: TX/RX 430.000-439.9975 (FCC/IC amateur radio models not available) |
| MODULATION: | 16K0F3E(FM)/11K0F3E(Narrow FM) |
| CHANNEL STEPS: | 2.5KHz, 5KHz, 6.25KHz, 8.33KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz |
| MEMORY CHANNEL: | 200 ch |
| ANTENNA IMPEDANCE: | 50ohm unbalanced |
| FREQUENCY STABILITY: | +/- 2.5ppm |
| POWER SUPPLY REQUIREMENT: | 13.8V DC +/- 15% Negative ground |
| CURRENT DRAIN: | Approx. 12A TX high / 0.6A RX max. / 0.4A RX squelched |
| OPERATING TEMPERATURE: | -20digC to +60digC |
| DIMENSIONS (W/O PROJECTION): | 145(W) x 47(H) x 190(D) mm approx. |
| WEIGHT: | Approx. 1.2Kg |
| Transmitter | |
| POWER OUTPUT: | DR-138: 60W / 25W / 10W DR-438: 45W / 25W / 10W |
| MODULATION SYSTEM: | Variable Reactance Frequency Modulation |
| SPURIOUS EMISSION: | Less than -60dB |
| MAXIMUM FREQUENCY DEVIATION: | +/- 5 KHz (FM) / +/- 2.5 KHz (NFM) |
| Receiver | |
| RECEIVE SYSTEM: | Direct conversion |
| SENSITIVITY (-12DB SINAD): | VHF 0.25uV / UHF 0.35uV or better |
| SQUELCH: | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF |
| AUDIO OUTPUT POWER: | 2.0 W (8 ohm, 10% distortion) |
