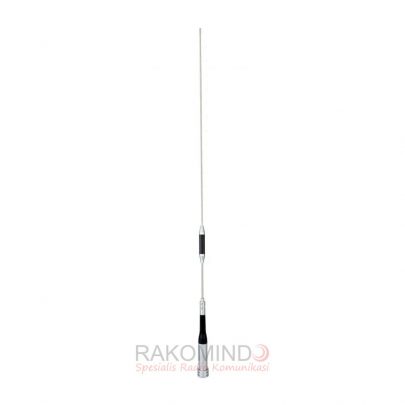

Antena Diamond SG-M506
Antena Diamond SG-M506. With an approx. 63cm length also an ideal antenna for roof mounting, but also suitable for fender or trunk mounts.
The T-SGM-506 achieves up to 4.8dBi gain in the 70cm band and a articulated joint simplifies eg the entrance into garages, etc. Valuable processing.
Spesifikasi Diamond SGM506R: 144 / 430MHz (2m /7 cm)
- Length: 0.63 m
- Weight: 165 g
- Gain: 2.15 dBi (144 MHz) ,4.8dBi (430 MHz)
- Max. power rating: 60 W FM (Total)
- Impedance: 50 ohms
- VSWR: Less than 1.5:1
- Connector: MP
- Type:1/2 wave radialless (144 MHz)
- 2X5/8 wave radialless (430 MHz)
