Alinco DR-CS10
Spesifikasi Alinco DR-CS10 Radio RIg dalam kemasan ultra ringkasnya dilengkapi dengan fitur teknologi tinggi. Pengoperasian DR-CS10 yang mudah dan lancar diwarisi dari seri peralatan radio Alinco yang populer seperti layar & mikrofon back-lit besar, audio transmisi / penerimaan yang sangat baik, memori 200ch, berbagai pemindaian, dan banyak lagi tanpa biaya tambahan.Radio Rig Alinco DR-CS10 60 Watt VHF 136 – 174 MHz 200 channel memory body tipis dan kecil cocok untuk penggunaan di mobil.
FITUR ALINCO DR-CS10
- Output power selectable 60W / 25W / 10W
- PC Programmable 200 CH
- Alphanumerik name tags
- Wide variety of selective calling features built-in; The 2-Tone, 5-Tone, 51 CTCSS, 1024 DCS, 4 Tone-burst tones and DTMF / ANI decode
- Radio Stun / Kill / revive functions to protec your communication security
- Large, bright LCD and Easy – to – operate backlit microphone keys
- Multi-function microphpne enable direct frequensi entry & remote control
- Various scan modes, Key Lock, Wide / Narrow operations and more
FITUR LAINNYA Alinco DR-CS10
- Rentang Frekuensi: 136-174 MHz
- Jumlah Saluran: 200 saluran
- Tegangan Operasi: 13,8V DC ± 15%
- Memadamkan: Pembawa / CTCSS / DCS / 5 Nada / 2 Nada / DTMF
- Stabilitas Frekuensi: ± 2.5ppm
- Suhu Operasi: -20ºC~+60ºC
- Dimensi: kira-kira 145 (L) x 35 (T) x 180 (D) mm.
- Berat: Kira-kira. 0,9 kg
Specification Alinco DR-CS10
GENERAL
| Frequensi Range | 136.000 – 173.9975 MHz |
| Number Of Channels | 200 channels |
| Channel Spacing | 25KHz (wide mode) 20KHz (middle mode) 12.5KHz (narrow mode) |
| Channel step | 2.5 KHz, 5KHz, 6.25KHz, 8.33KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 30KHz, 50KHz |
| Operating Voltage | 13,8V DC ±15% |
| Squelch | Carrier / CTCSS / DCS / 5 Tone / 2 Tone / DTMF |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20ºC~+60ºC |
| Dimensions | 145 (W) x 35 (H) x 180 (D) mm approx. |
| Weight | Weight approx. 0.9 kg |
RECEIVER
| Wide Mode | Narrow Mode | |
| Sensitivity (12 dB Sinad) | ≤0.25μV | ≤0.35μV |
| Adjacent Channel Selectivity | ≥70dB | ≥60dB |
| Inter Modulations | ≥65dB | ≥60dB |
| Spurious Rejection | ≥70dB | ≥70dB |
| Audio Response | +1~-3dB (0.3~3KHz) | +1~-3dB (0.3~2.55KHz) |
| Hum & Noise | ≥45dB | ≥40dB |
| Audio Distortion | ≤5% | |
| Audio Power Output | >2W@10% | |
TRANSMITTER
| Wide Mode | Narrow Mode | |
| Power Output | 60W / 25W / 10W | |
| Modulation | 16KϕF3E | 11KϕF3E |
| Adjacent Channel Power | ≥70dB | ≥60dB |
| Hum & Noise | ≥40dB | ≥36dB |
| Spurious Emission | ≥60dB | ≥60dB |
| Audio Respon | +1~-3dB (0.3~3KHz) | +1~-3dB (0.3~2.55KHz) |
| Audio Distortion | ≤5% | |
| Current Drain (Max) | 10A (TX) / 0.6A (RX) | |

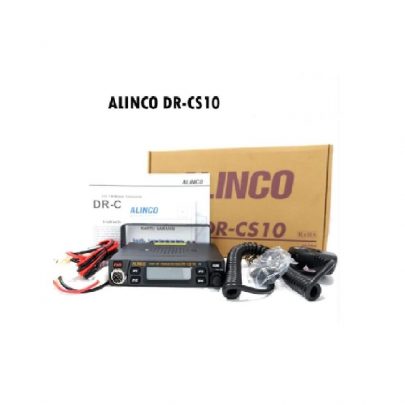

Paket standard:
- Alinco DR-CS10
- Bracket
- Kabel DC/Power
- Microphone.
