XIR P6620i TIA-4950

HomeXIR P6620i TIA-4950

XIR P6620i TIA-4950

(1 customer review)

Dengan MOTOTRBO XiR P6600i, Anda terhubung dengan lebih baik, lebih aman dan lebih efisien. Seri XiR P6600i dirancang untuk pekerja sehari-hari yang membutuhkan komunikasi yang efektif. Dengan dukungan sistem dan audio yang nyaring dan jernih, radio next-generation ini memberikan konektivitas hemat biaya ke organisasi Anda, masa pakai baterai lebih lama (hingga 28 jam), jangkauan yang lebih jauh, waterproofing yang lebih baik (IP67), dan ketersediaan model HazLoc.

Description

MOTOTRBO XiR P6620i TIA-4950

WHAT’S NEW IN THESE NEXT GENERATION RADIOS

• Over-the-air software updates
• Enhanced audio quality
• Improved expandability
• Better battery life (up to 28 hours)
• Better range
• Better waterproofing (IP67)
• HazLoc models available

FEATURES

– Digital technology
– System type: Conventional, Capacity Plus, IP Site Connect, Linked Capacity Plus
– Waterproof – IP67
– Military specs : MIL-STD 810C, MIL-STD 810D, MIL-STD 810E, MIL-STD 810F, MIL-STD 810G
– HazLoc Certification: UL-Approved to TIA-4950 for use in Hazardous Locations, Division 1, Class I, II, III, Groups C,D,E, F, G; Division 2, Class 1, Groups A,B,C,D when properly equipped with Motorola UL-Approved battery.

CHARACTERISTICS

Frequency: VHF:136-174 MHz, 350-400 MHz,UHF:403-527 MHz

Channel spacing: 12.5, 25
Power output:   1W/4W – UHF        1W/5W – VHF
Physical:
Dimensions H x W x D (with standard battery): 4.8 x 2.2 x 1.4 in (122 x 56 x 36 mm)
Weight (with standard battery): 9 oz (264 g)
Busy channel lockout: Yes
Call tones: Yes
Channel scan: Yes

Missed call alerts: Yes
Group call: Yes
Scan types: Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert
Time out timer: Yes
Programmable buttons: Yes
Signalling: MDC (Encode/Decode), Quik-Call II (Encode/Decode)
Lone worker: Yes
Private line: Yes
Transmit interrupt: Optional
Call forward: Yes
Caller ID: Yes
Number of channels – Limited Keypad (LKP) Models: 128 channels
Number of channels – No Keypad (NKP) Models: 16 channels
CPS (Customer Programming Software): Yes
One to one calling: Yes
Phone book: Yes
Talkaround: Yes
Voice operated transmit (VOX): Yes
Intelligent audio: Yes
Voice announcement: Yes
Monitor Permanent (Sticky) Monitor: Yes
Digital private line: Yes
Enhanced privacy: Optional

  Limited Keypad (LKP) Model No Keypad (NKP) Model
Model Number XiR P6620i XiR P6600i
Band VHF 350 UHF VHF 350 UHF
GENERAL SPECIFICATIONS
Frequency 136-174 MHz 350-400 MHz 403-527 MHz 136-174 MHz 350-400 MHz 403-527 MHz
High Power Output 5 W 4W 4 W 5 W 4W 4 W
Low Power Output 1 W 1W 1 W 1 W 1W 1 W
Channel Spacing 12.5, 25 kHz
Channel Capacity 256 16
Dimensions (H x W x D),

Radio+Standard1600mAhBattery

122 x 56 x 36 mm 122 x 56 x 36 mm
Weight, Radio + Standard 1600 mAh Battery 281 g 264 g
Dimensions (H x W x D),

Radio + Slim 2050 mAh Battery

122 x 56 x 36 mm 122 x 56 x 36 mm
Weight,Radio+Slim2050mAh Battery 287 g 270 g
Dimensions (H x W x D),

Radio+HighCapacity3000mAhBattery



122 x 56 x 42 mm



122 x 56 x 42 mm

Weight, Radio + High Capacity 3000 mAh Battery 309 g 292 g
Digital / Analogue Battery Life1, Standard 1600 mAh Battery 16.0 / 11.5 hrs 15.0 / 11.5 hrs 16.0 / 11.5 hrs 15.0 / 11.5 hrs
Digital / Analogue Battery Life1, Slim 2050 mAh Battery 19.5 / 14 hrs 18.5 / 14 hrs 19.5 / 14 hrs 18.5 / 14 hrs
Digital / Analogue Battery Life1, High Capacity 3000 mAh Battery 28.5 / 21 hrs 27.5 / 21 hrs 28.5 / 21 hrs 27.5 / 21 hrs
Power Supply (Nominal) 7.5 V



Warranty

  • Standard package

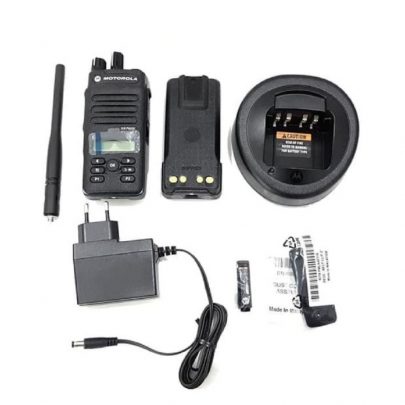

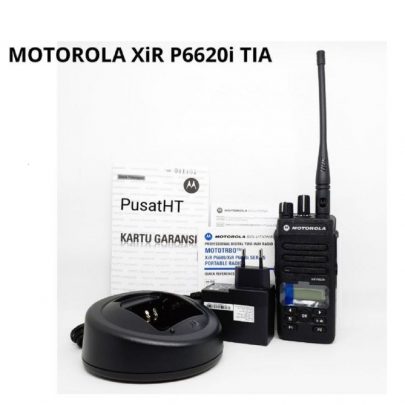

    NiMH 1300mAh battery, Single-Unit Charger, Standard UHF or VHF antenna, Accessory Dust Cover, 2″ Belt Clip, User Guide, 2 year warranty.

1 review for XIR P6620i TIA-4950

  1. admin

    HT Explosion proof cocok digunakan dilingkungan yang mudah terbakar, seperti pengeboran minyak dan gas, pabrik kimia dan yang termasuk harzardous area lainnya
