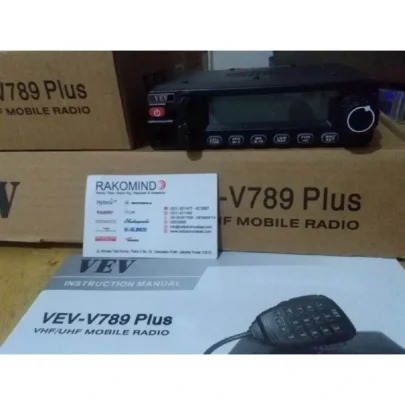

VEV-V789 Plus VHF
Radio rig VEV-V789 Plus memiliki fitur-fitur sebagai berikut:
- LCD display with full dot-matrix, background color adjustable
- Dual-band standby, dual-band display
- Scrambler function
- ANI function
- CDCSS/DCS/2-TONE
- DTMF function
Detailed introduction:
* Easy control and adjust by operation menu
* 200 channels memory and call channels. Memory channel group
* Several scanning modes available, easy to use, high efficiency
* Works as simple relay station
* LCD screen display, backlight brightness adjustable
* Dual-band standby, dual-band display
* Handheld microphone with keys for programming
* Scrambler function
* Speech companding
* CTCSS/DCS/2 tone
* ANI funcion
* Dual tone multi-frequency (DTMF) function
* Support PC program, wire clone, transceiver program
* Support Share frequency, pilot frequency, offset frequency
* Wide and narrow frequency step optional
* Auto power off when power voltage out of normal range
Spesifikasi Vev-V789
| Frequency range | (1)134.0000~175.9950MHz |
| Channel step | 5/6.25/10/12.5/15/20/25/30/50/100KHz |
| Transmitting method | F3E(FM) |
| Antenna impedance | 50Ω, imbalance |
| Frequency stability | Bettr than ±2.5ppm (-20℃~+60℃) |
| Envorement temperature | -20℃~+60℃ |
| Power supply | 13.8VDC±15%, negative grounded |
| Current | Receive (at 2W output): 1.0A or less Transmit(max): 14A or less |
| Power output | (1)5/15/25/40/60W (2)5/10/20/30/50W (3)5/10/20/30/50w |
| Maximum frequency deviation | Wide: ±5KHz, Narrow: 2.5KHz |
| Spurious emissions | Better than -60dB |
| Microphone impedance | 600Ω |
| Circuitry | Double-super system, intermediate frequency: 46.350MHz/450Khz |
| Sensitivity | Bettery than 0.2uV(12db SINAD) |
| Selectivity | Wide: 12KHz/28KHz, Narrow: 9KHz/22KHz |
| Audio output | 2W or higher |
| Audio output impedance | 8Ω |
| Dimensions | 173x141x41mm |
| Weight | About 1.2 kg |

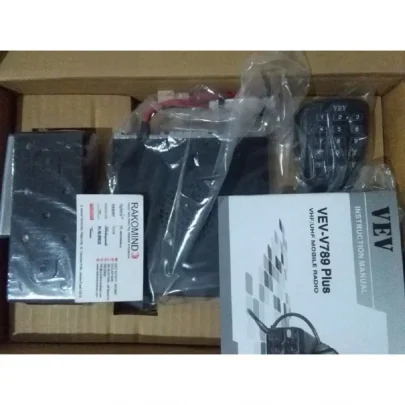

Each package contain:
1x VEV-V789 VHF or VEV-889 UHF
1x Speaker Mic
1x Mobile Mounting Bracket
1X DC-Power Cord
1X English manual
1X Warranty Card
