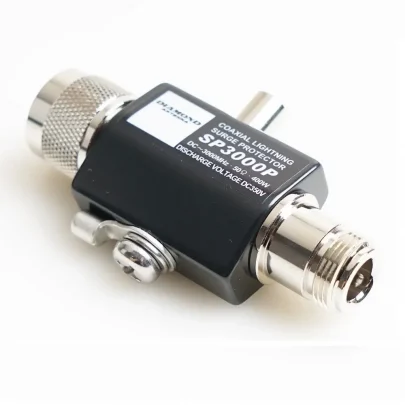

Diamond Antenna SP3000P
Arrester Diamond Antenna SP3000P adalah lighting arrester original dengan frekuensi DC 3,000 MHz. SWR : less than 1.2:1, maximal power 400w PEP, konektor Type N female Type N male, voltage 1000 V, kapasitas 6000A.
Spesifikasi Diamond Antenna SP3000P
| Frequency Range | DC – 3,000 MHz |
| SWR | Less than 1.2:1 |
| Insertion Loss | Less than 0.3 dB |
| Max Power Rating | 400w PEP |
| Connector | Type N female – Type N male |
| Impulse Wave Discharge Voltage | 1000v |
| Impulse Wave Discharge Capacity | 6000A |
| Impulse Wave Retention Discharge Capacity | DC350v ± 20% |
| Insulating Resistance DC100v | Over 10,000M ohms |
| Weight | 110g |
| Dimensions | 77Wx41Hx21D mm |
