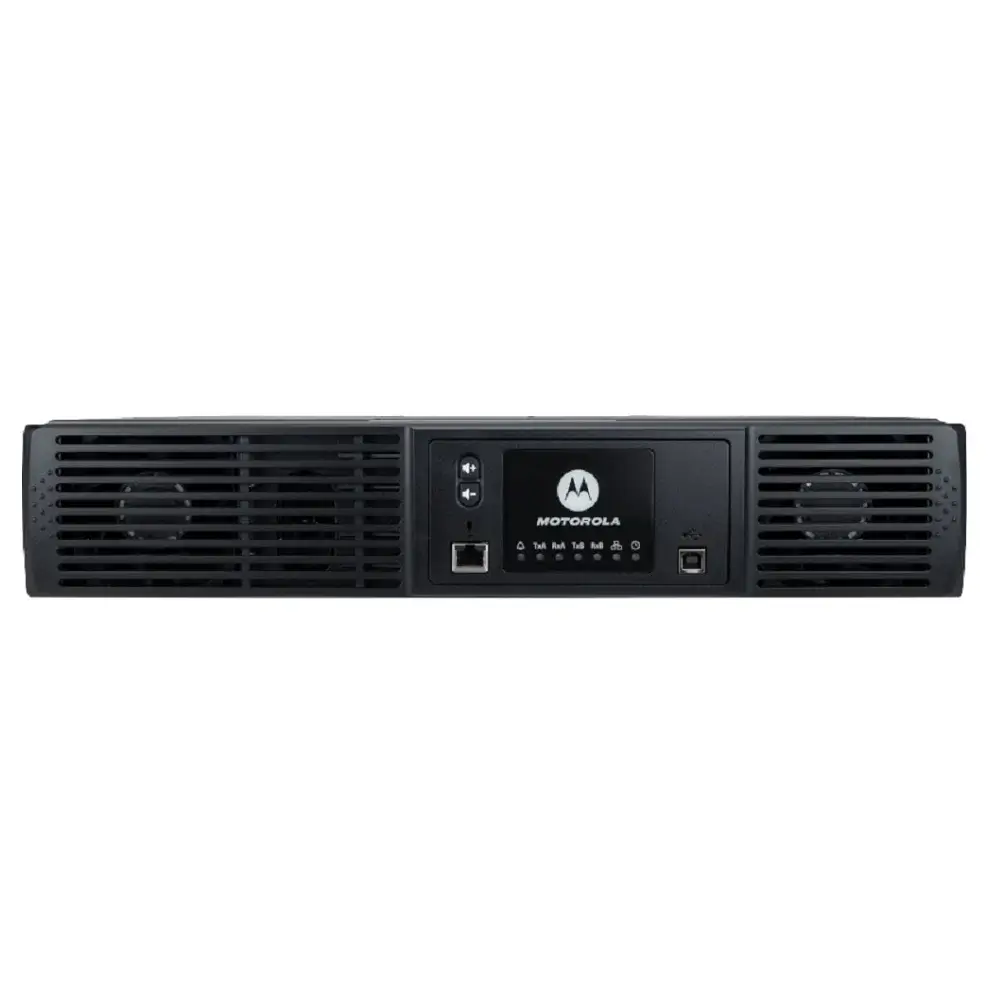

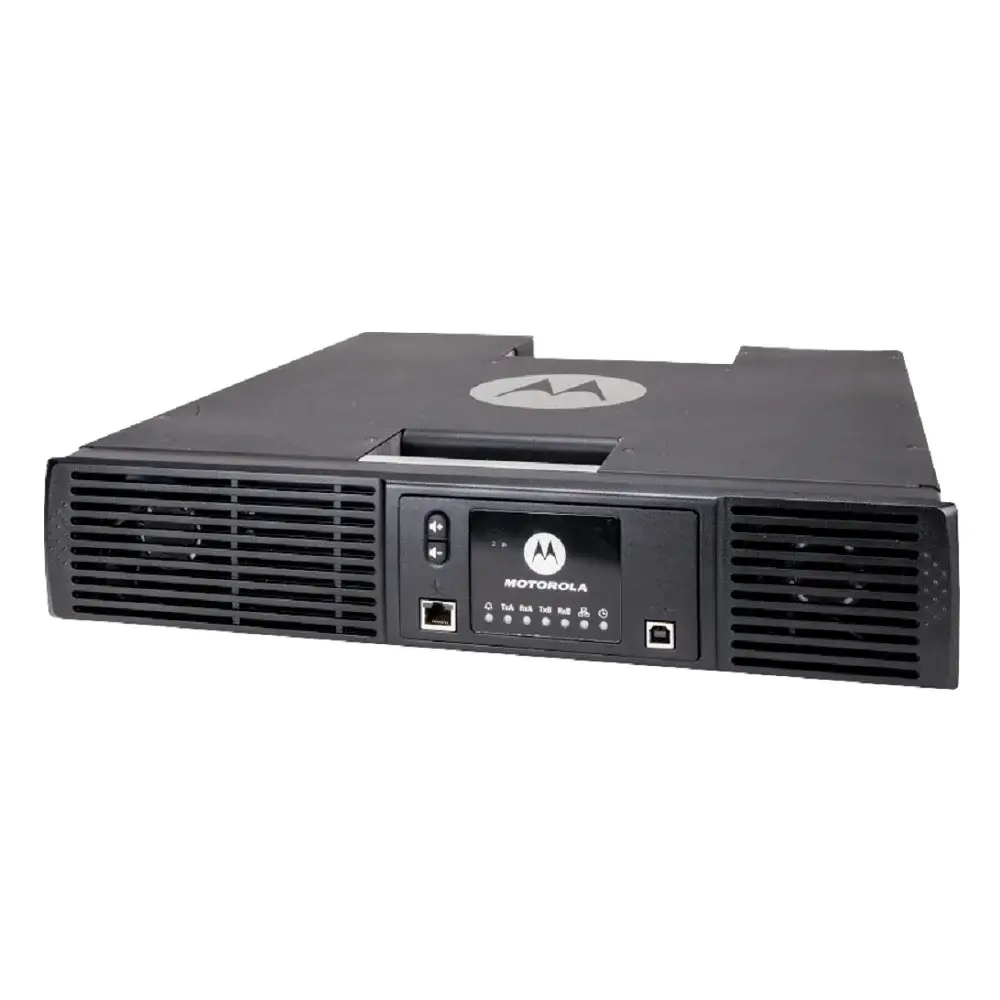

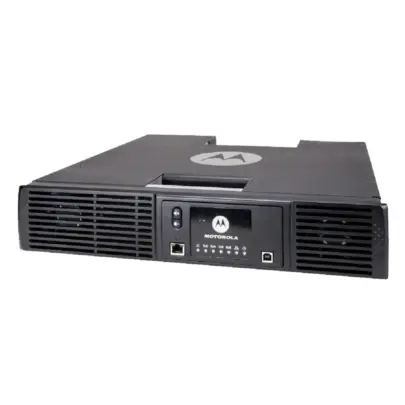

Motorola SLR 8000
Motorola SLR 8000 adalah repeater digital yang menyediakan konektivitas audio dan data dengan stabilitas tinggi. Repeater ini mengoptimalkan transmisi radio dua arah dengan performa dan reliabilitas maksimal.
Fitur-Fitur Motorolola SLR 8000
Power Output Besar
Meski hanya setinggi 2U, repeater Motorola SLR 8000 dapat beroperasi secara terus-menerus hingga 100 watt dengan sensitivitas tinggi.
Dapat Dikembangkan
Jika anda memerlukan sistem konvensional di satu lokasi, digital repeater ini dapat mendukung semua konektivitas luas melalui IP Site Connect. Selain itu, repeater ini juga dapat digunakan sebagai repeater analog atau sebagai repeater campuran saat proses migrasi.
Serbaguna
Repeater HT original Motorola ini menggabungkan fungsi komunikasi dua arah terbaik dengan integrasi suara dan data yang mulus. Repeater ini hadir dengan fitur-fitur canggih yang mudah digunakan serta kapasitas yang ditingkatkan untuk memenuhi berbagai kebutuhan.
Spesifikasi Motorola SLR 8000
| GENERAL | |||
| VHF | UHF | 800/900 | |
| Frequency Range | 136 – 174 MHz | 400 – 470 MHz | 800 RX: 806 – 825 MHz TX: 851 – 870 MHz 900 RX: 896 – 902 MHz TX: 935 – 941 MHz |
| Channel Spacing | 25*/ 12.5 kHz | 12.5 / 20 kHz / 30 kHz | |
| Channel Step Size | 5 Hz | ||
| Frequency Stability | + / – 0.5 PPM | + / – 0.1 PPM | |
| Channel Capacity | 64 | ||
| RF Output Power | 1 – 100W | ||
| Dimensions (H x W x D) | 3.5 x 19 x 17.25 in (89 x 483 x 438 mm) | ||
| Weight | 31 lbs (14.1 kg) | ||
| Input Voltage (AC) | 100 – 240 Vac, 47 – 63 Hz | ||
| Current (standby), 110/240 V | 0.25 / 0.3 A | 0.27/0.31 A | |
| Current (transmitting at 100 W), 110/240 V | 2.1 / 1.1 A (typical) | 2.0 / 1.1 A (typical) | 2.8 / 1.3 A (typical) |
| Input Voltage (DC) | 12 V (11.0 – 15.5 V) / 24 V (21.6 – 32.0 V) | ||
| Current (standby), 24 V | 0.5 A | 0.6 A | |
| Current (transmitting at 100 W), 24 V | 8.6 A (typical) | 8.2 A (typical) | 12 A |
| Input Power Modes | AC only, DC only, AC with Battery Revert | ||
| Operating Temperature Range | -22 to +140 °F (-30 to +60 °C) | ||
| Humidity | RH of 95%, Non-condensing at 50 °C (122 °F) | ||
| Max Duty Cycle | 100% | ||
| Digital Vocoder Type | AMBE+2™ | ||
| Battery Charger Capacity (12 / 24 V) | 5 A | ||
| Connectivity, front panel | USB B Receptacle, Microphone (RJ45), Speaker (integrated) | ||

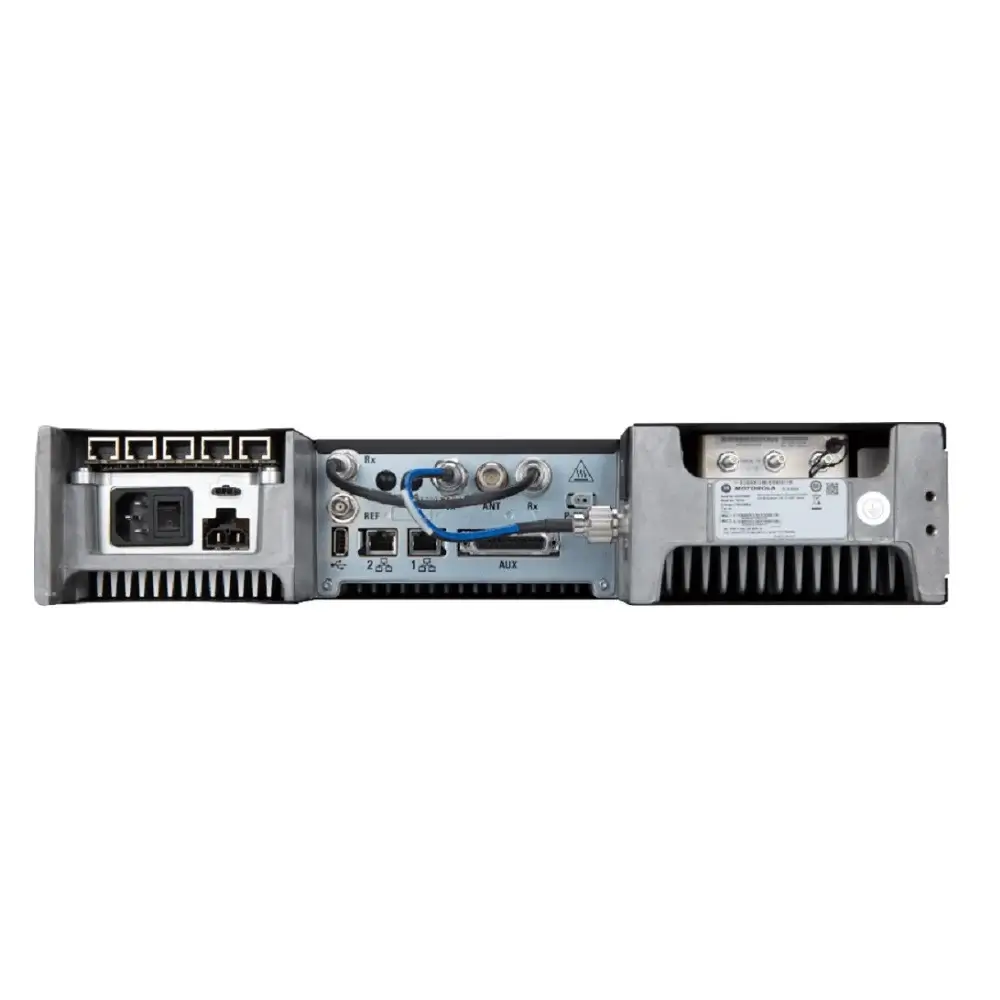

| Connectivity, rear panel | Tx (N female), Rx (BNC female), USB A Receptacle, 2x Ethernet, DB25 Accessory Connector, External Reference (BNC Female) | ||
| External Reference | 5 / 10 MHz (Auto-detect) | ||
| Supported System Types | Digital Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus Analog Conventional, Analog Conventional Voting, MPT 1327 | ||
| Audio Types | Input: Balanced (600 ohms and Country-specific Impedances), Unbalanced (1000 ohms), Microphone Accessory Port. Output: Balanced (600 ohms and Country-specific Impedances), Unbalanced (600 ohms), Integrated Speaker. |
||
| Audio Levels | Input: Balanced: +10 to -30 dBm, Unbalanced: Adjustable, 80 mV rms nominal for 60% RSD. Output: Balanced: +7 to -30 dBm, Unbalanced: Adjustable, 330 mV rms nominal @ 60% RSD. |
||
| FCC Emission Designators | 11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W | 11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W, 21K7D7E, 21K7D7D, 21K7D7W | |
| FCC Type Acceptance | ABZ99FT3095B | ABZ99FT4098B | ABZ99FT5101B |
| IC Description | 109AB-99FT3095B | 109AB-99FT4098B | 109AB-99FT5101B |
| RECEIVER | |||
| VHF | UHF | 800/900 | |
| Frequency Range | 136 – 174 MHz | 400 – 470 MHz | 806 – 825 MHz 96 – 902 MHz |
| Sensitivity, 12dB SINAD | 0.3 uV (0.22 uV typical) | 0.28 uV (0.18 uV typical) | |
| Sensitivity, 5% BER | 0.25 uV (0.18 uV typical) | 0.28 uV (0.18 uV typical) | |
| Selectivity (TIA603E), 25* / 12.5 kHz | 83/52 dB | 78/52 dB | 78/52 dB |
| Selectivity (TIA603), 25* / 12.5 kHz | 83/75dB | 80/75dB | 80/75 dB |
| Intermodulation Rejection (TIA603E/ETSI) | 85/73 dB (87/78 dB typical) | 85/73 dB (88/79 dB typical) | |
| Spurious Rejection (TIA603E/ETSI) | 85/75 dB (95/90 dB typical) | 90/75 dB (105/90 dB typical) | |
| Audio Distortion | < 3% (<1.5% typical) | ||
| Hum and Noise, 25* / 12.5 kHz | -50/-45 dB (-56 / -52 dB typical) | ||
| Blocking | > 110 dB (113 dB typical) | ||
| TRANSMITTER | |||
| VHF | UHF | 800/900 | |
| Frequency Range | 136 – 174 MHz | 400 – 470 MHz | 851 – 870 MHz 935 – 941 MHz |
| RF Output Power | DC (24 V) or AC 1 – 100 W DC (12 V) 1 – 50 W | ||
| Max Duty Cycle | 100% | ||
| Intermodulation Attenuation | 55 dB | ||
| Adjacent Channel Power (TIA603E), 25*/12.5 kHz | 75/60 dB | ||
| Adjacent Channel Power (ETSI), 25* /12.5 kHz | 75/60 dB (78 / 62 dB typical) | 70 dB/63 dB (82 / 76 dB typical) | |
| Conducted Spurious Emissions | -36dBm | ||
| Audio Response | TIA603D | ||
| Audio Distortion | < 3% (<1% typical) | ||
| Hum and Noise, 25*/ 12.5 kHz | -50/-45 dB (-55 / -52 dB typical) | ||
| Rated System Deviation, 25* /12.5 kHz | ±5.0 / ±2.5 kHz | ||
