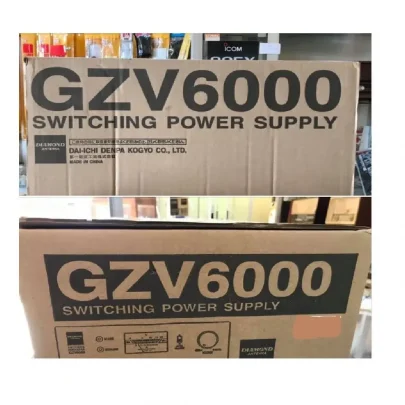

Diamond GZV6000 – Switching Power Supply
Diamond GZV6000 adalah Switching power supply original. Switching mode 60A(continuous, 8hours), input voltage 230VAC 11A(50,60Hz), output voltage 1DC to 15V variable, output current 60A(continuous, 8hours), circuit breaker:shutdown at 66A 1A. Ripple voltage Less than 5mvRMS at rated output Fuse:20A.
Spesifikasi Diamond GZV6000
- Size: 8.25″ x 4.5″ x 16″
- Weight: 6 Kg
- 60 Amp Continuous Rating, 100% Duty Cycle
- Variable Voltage Control 1-15 VDC
- Voltage Control Knob has center detent at 13.5 VDC
- Overload & short-circuit protection with Current Foldback at approximately 62 Amp
- Over Temperature Protection; variable speed fan automatically controlled for quiet operation
- Meter Selector allows monitoring of voltage & current
- Access to front panel DC terminals and cigarette lighter jack; standard 60A terminals on rear panel
- Built-in 8W speaker
- Circuitry yields high RFI protection from external sources
- AC line filter for EMI protection
- Standard 3-wire heavy duty line cord
- Power Indicator & Overload Indicator
- Accepts 100-240 VAC ± 20% 50-60 cps
- Ripple & Noise less than 8 mV r.m.s.
- 1 Year Limited Warranty
