Coaxial Lightning Surge Protector

The Diamond SP series of coaxial surge protectors offer wideband capability with extremely low loss. They boast an insertion loss of less than 0.3 dB. They have an impulse wave discharge capacity of 6000 Amps. Insulating resistance DC 100 V is over 10,000M ohms. Both feature a replaceable surge arrester element.

Diamond SP3000 Lightning Arrester

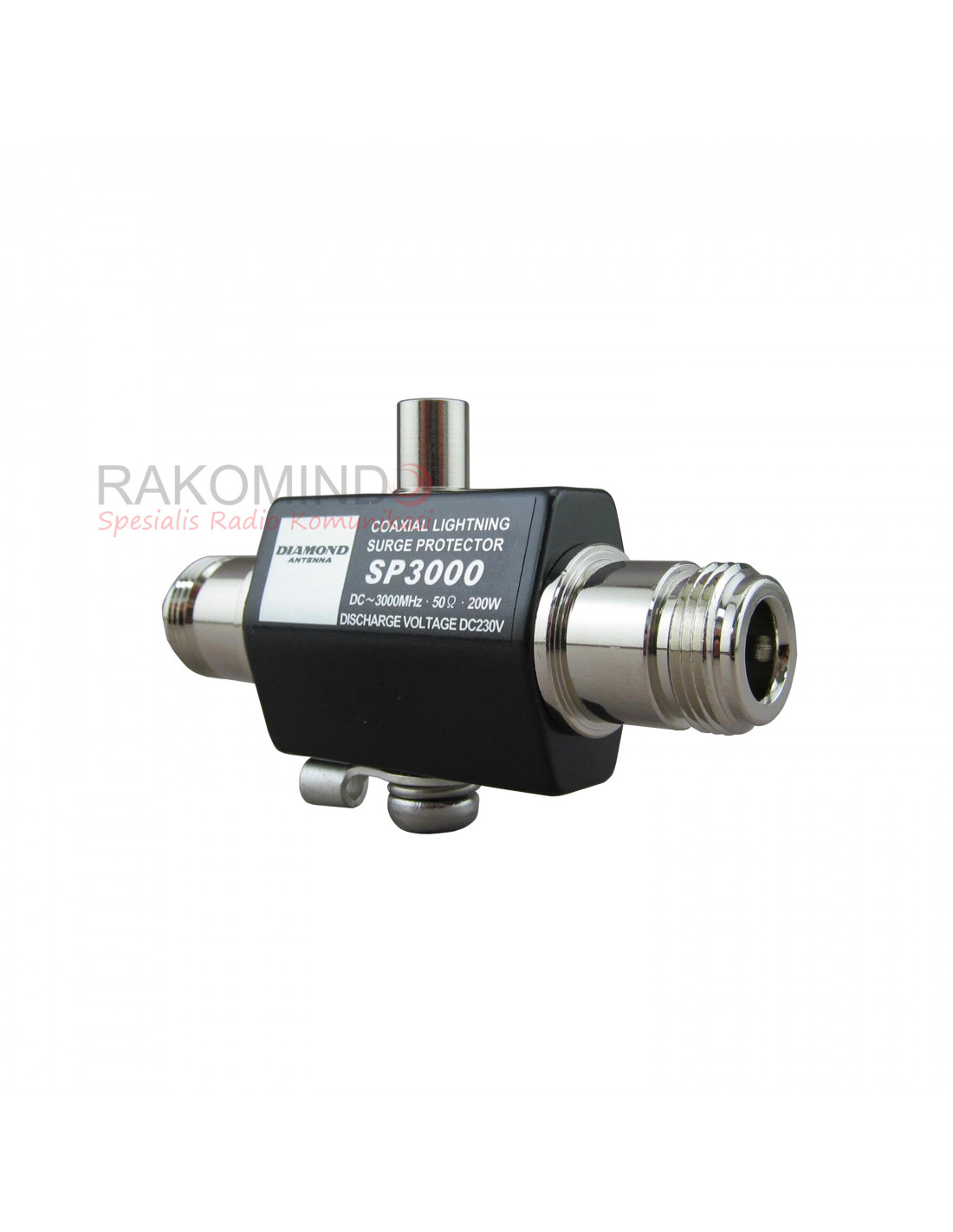

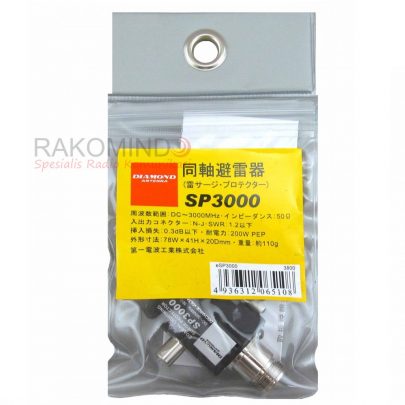

Diamond SP3000 Lightning Arrester or Coaxial Lightning Surge Protector for grounding kit.

Specifications:

Frequency: DC 3,000MHz
SWR: less than 1.1
Insertion Loss: less than 0.2 dB
Max Power Rating: 200w PEP
Connector: Type N female – Type N female
Impulse Wave Discharge: Voltage 1000v, Capacity 6000A
Impulse Wave Retention Discharge Capacity: DC230v ± 20%
Insulating Resistance DC100v: Over 10,000M ohms
Weight: 0.25 lbs. / 113g
Dimensions: 3.1″ x 1.6″ x 0.8″ / 78 x 41 x 20mm

Diamond SP3000 Lightning Arrester

Dibaca 122

Brand

Diamond
