SX-600

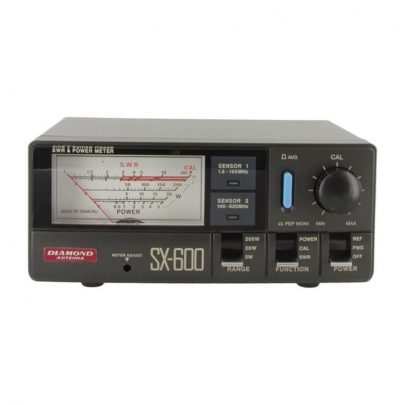

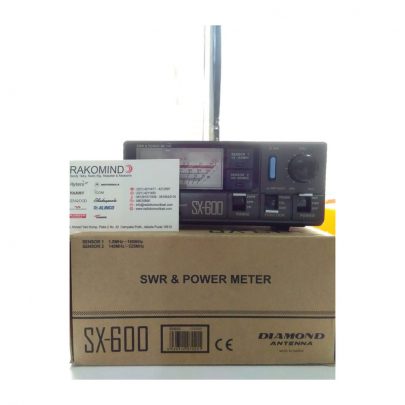

Diamond Antenna SX600 Dual Power Meters provide a switchable selection of metering from one of two directional couplers in one box!

Select the 1.8 to 160 MHz coupler for your Low-Band/VHF rig or select the 140 to 525 MHz coupler for your VHF/UHF rig. Since there are two separate couplers, you can leave the SX600 in-line with both rigs at the same time! The SX600 measures forward/reflected power and SWR using a single sweep meter.

Category: Tags: , ,

Description

Diamond Antenna SX600 Dual Power Meters provide a switchable selection of metering from one of two directional couplers in one box!

Select the 1.8 to 160 MHz coupler for your Low-Band/VHF rig or select the 140 to 525 MHz coupler for your VHF/UHF rig. Since there are two separate couplers, you can leave the SX600 in-line with both rigs at the same time! The SX600 measures forward/reflected power and SWR using a single sweep meter.

With three full-power scales of 5, 20, and 200 watts, the SX600 provides handheld, QRP, and high power operating levels. With most of today’s rigs providing 200 watts or less, the SX600 will satisfy the vast majority of transceivers. Their compact size makes these meters useful for testing both base and mobile installations.

Low insertion loss and accurate readings mean that your station will operate to peak efficiency. Speaking of peaks, these meters will read peak watts, as well as RMS! That’s so handy when operating SSB on HF or VHF/UHF bands!

When you need the features and flexibility of a dual-input power/SWR meter, one of these Diamond Antenna SX600 Dual Power Meters from DX Engineering is the obvious choice!



Diamond SX-600 SWR Dual Power Meters SX600

Diamond Antenna SX600 Dual Band SWR Power Meter HF 6M 2M 1.8 – 160, 140 -525 Mhz

Brand: Diamond

Manufacturer’s Part Number: SX600

Part Type: SWR/Wattmeters

Product Line: Diamond Antenna SX600 Dual Power Meters

DXE Part Number: DMN-SX600

Size: W155 × H63 × D103mm

Weight: 630 g

Frequency range: S1 (1.8 to 160MHz), S2 (140 ~ 525MHz)

Power measurement range: 5W 20W 200W

Power measurement accuracy: ± 10% (F.S)

Measuring the minimum SWR power: S1 (1W) of S2 (4W)

Insertion Loss: S1 (0.2 db), S2 (not more than 0.3 db)

Measurement functions: the SWR of PEP monitor power traveling wave reflected wave power

The input interface: the M-J

Display lighting: lighting DC13.8V power to connect external sensors, the sensor switch LED display

Power supply: 13.8V

Sensor: The sensor system (S1/S2)

13.8V power meter is used for lighting. The normal measurement does not require.

Meter Frequency Range: 1.8-160 MHz

Meter Frequency Range 2: 140-525 MHz

Minimum Power Range: 5 W

Middle Power Range: 20 W

Maximum Power Range: 200 W

Meter Style: Sweep needle

Meter Illumination: Yes

Peak Power Readout: Yes

Peak Hold: No

Built-In Frequency Counter: No

Meter RF Connector Type: UHF female, SO-239

DC Power Required: Yes

External Power Input Voltage: 12 Vdc

Remote Sensor Included: No

SWR/Wattmeter Width: 6.000 in.

SWR/Wattmeter Height: 2.000 in.

SWR/Wattmeter Depth: 4.000 in.

SWR/Wattmeter Weight: 2.00 lbs.

Notes: Separate HF through 2 meters and UHF inputs; single switchable meter.
